SmartGD&T™ Training Models—Bent Cylinder & Actual Mating Envelope Model Set

Tolerance Zone Models Set

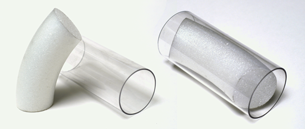

A model for demonstrating the concepts of the Maximum Material Envelope and the Unconstrained Actual Mating Envelope, and for demonstrating the means for defining the Axis of a bent cylinder.

Materials: PVC foam, Polycarbonate
Size: Ø55 mm x 125 mm
