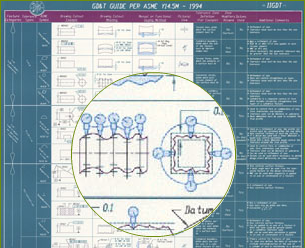

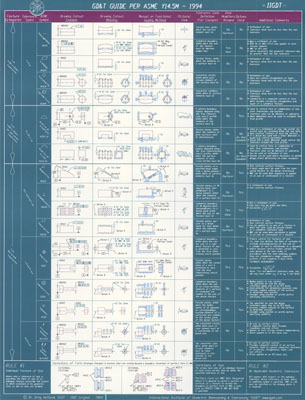

GD&T Chart per ASME Y14.5M-1994         Form   Profile   Runout To see a close up of the chart details, move your mouse over the image! See example below. The GD&T Chart illustrates the geometric symbols referenced in the ASME Y14.5M Dimensioning and Tolerancing. Each symbol is shown with expanded help and application notes providing a complete quick reference guide. Developed by Dr. Greg Hetland, this guide has been widely used in industry and can be found in many companies across the world. Size: 440 mm x 575 mm A Poster Paints a Thousand Words... Read about the History of the Chart here.   Part Number: 2002-1 Price: $12.00 *Quantity and price will be applied at the next screen.   Discount Chart Item Quantity Item Price Discount 1 $12.00 none 2-9 $10.80 10% 10-24 $10.20 15% 25-49 $9.60 20% 50-99 $8.76 27% 100-249 $7.92 34% 250-499 $6.12 49% Discounts apply automatically at checkout.
