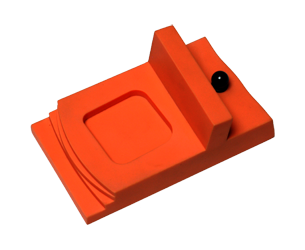

An "imperfect geometry" artifact for
demonstrating simple and composite Section and Surface
Profile tolerancing, Dimension Origin versus Size
tolerancing, Unconstrained and Orientation Constrained
Actual Mating Envelopes, and the problems associated
with short arcs. As in Geo-Fact I, an integral tooling
ball is the only "perfect geometry" feature serving as a
reliable metrology reference.
Materials: Polyurethane, Steel
Size: 90 mm x 150 mm |
