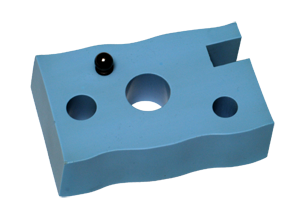

An "imperfect geometry" artifact for
demonstrating the concepts of DRF construction, as well
as the greater part of the ASME Y14.5 and ISO 1101
tolerancing tools for Size, Location, Orientation and
Form. An integral tooling ball, the only "perfect
geometry" feature, serves as a reliable metrology
reference.
Materials: Polyurethane, Steel
Size: 90 mm x 150 mm
Note: For full-fledged implementation, it is recommended
that the functional gage model, Gage-It I™, be purchased
with the Geo-Fact I. |
